Where to define Cables for the EFT testing

Discussion and questions regarding the Pulsed immunity module (ESD/EFT/Surge) of RadiMation.
Post Reply
solutionseeker
Posts: 45
Joined: 05 Oct 2012, 09:48

Where to define Cables for the EFT testing

Post by solutionseeker » 14 Aug 2013, 09:39

Where can I define the Cables for the EFT testing? In the manual it states “in the EUT Window”, but where in the EUT window?

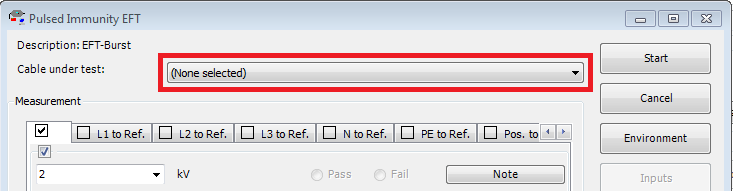

Adding Cables for EFT testing None selected.png
Adding Cables for EFT testing None selected.png (11.11 KiB) Viewed 16988 times

User avatar
sast
Posts: 168
Joined: 05 Sep 2012, 15:39
Contact:

Re: Where to define Cables for the EFT testing

Post by sast » 14 Aug 2013, 09:41

Thank you for asking. The cables that will be shown in the drop-down menu of the EFT test window must indeed be added with the use of the EUT window.

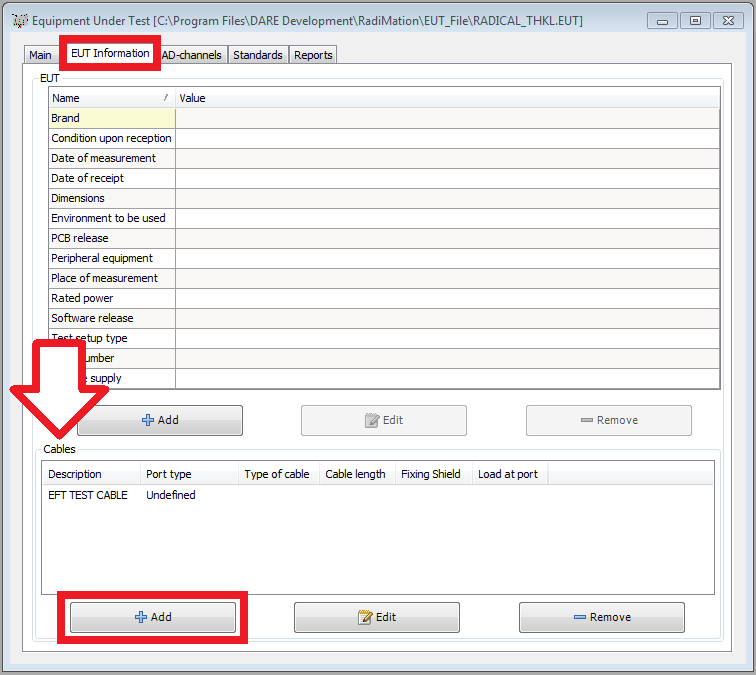

Please go to MENU -> FILE -> NEW EUT -> and open the tab EUT Information. Now you can see ‘Cables’. With Add it is possible to add a new cable.
These cables will be available in your EFT ‘Cable under test’ drop down menu.
Adding Cable under test for PI.png
Adding Cable under test for PI.png (23.99 KiB) Viewed 16986 times
